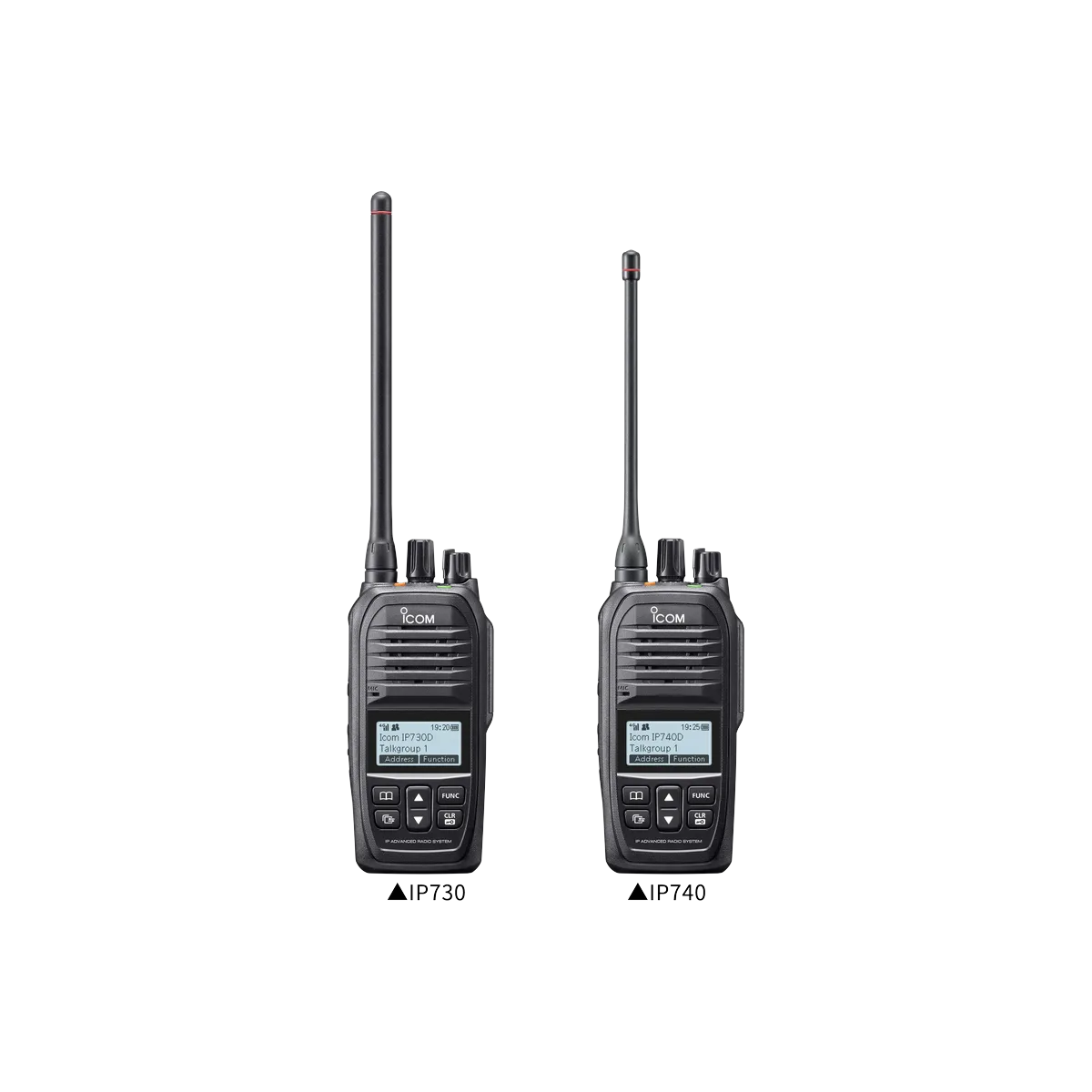

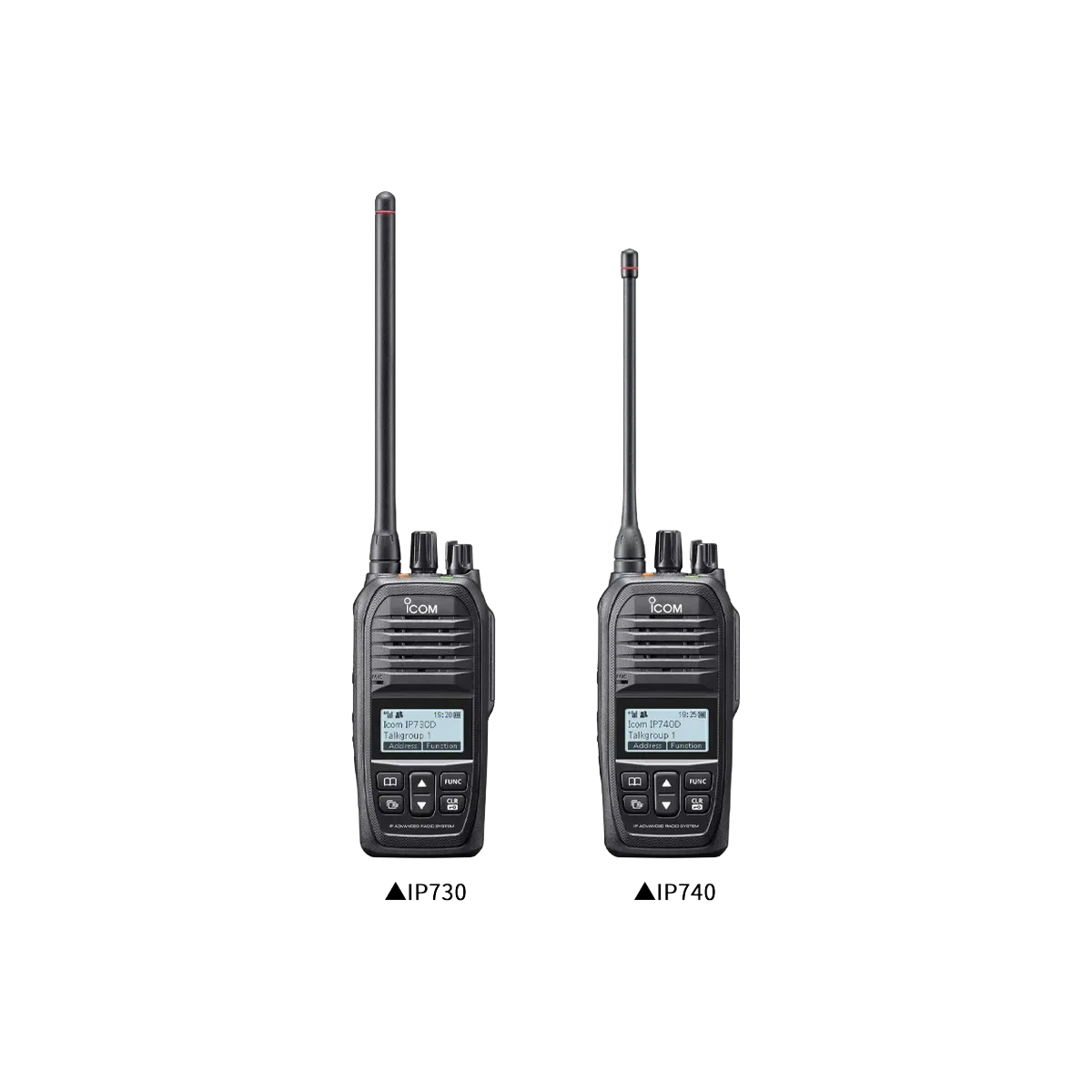

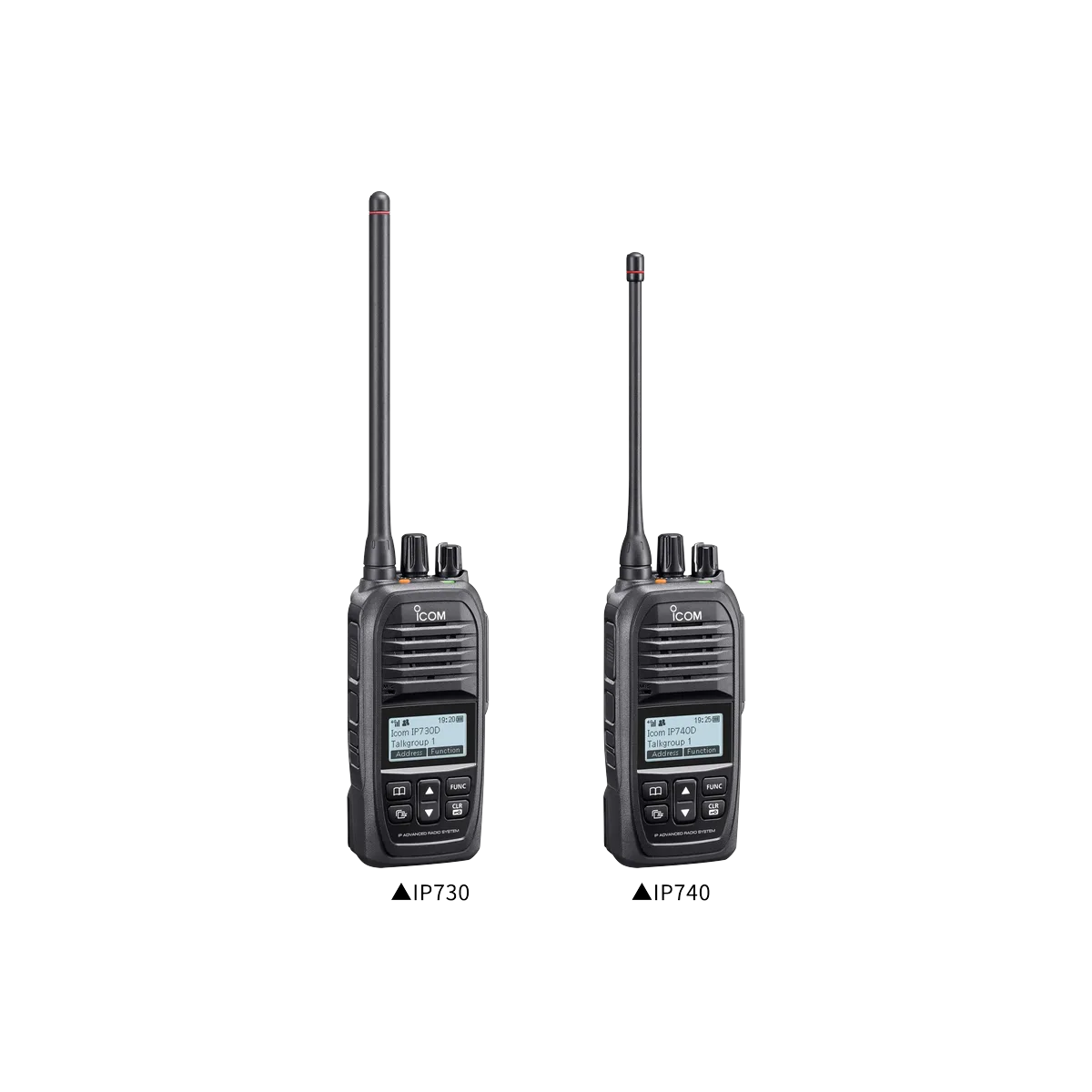

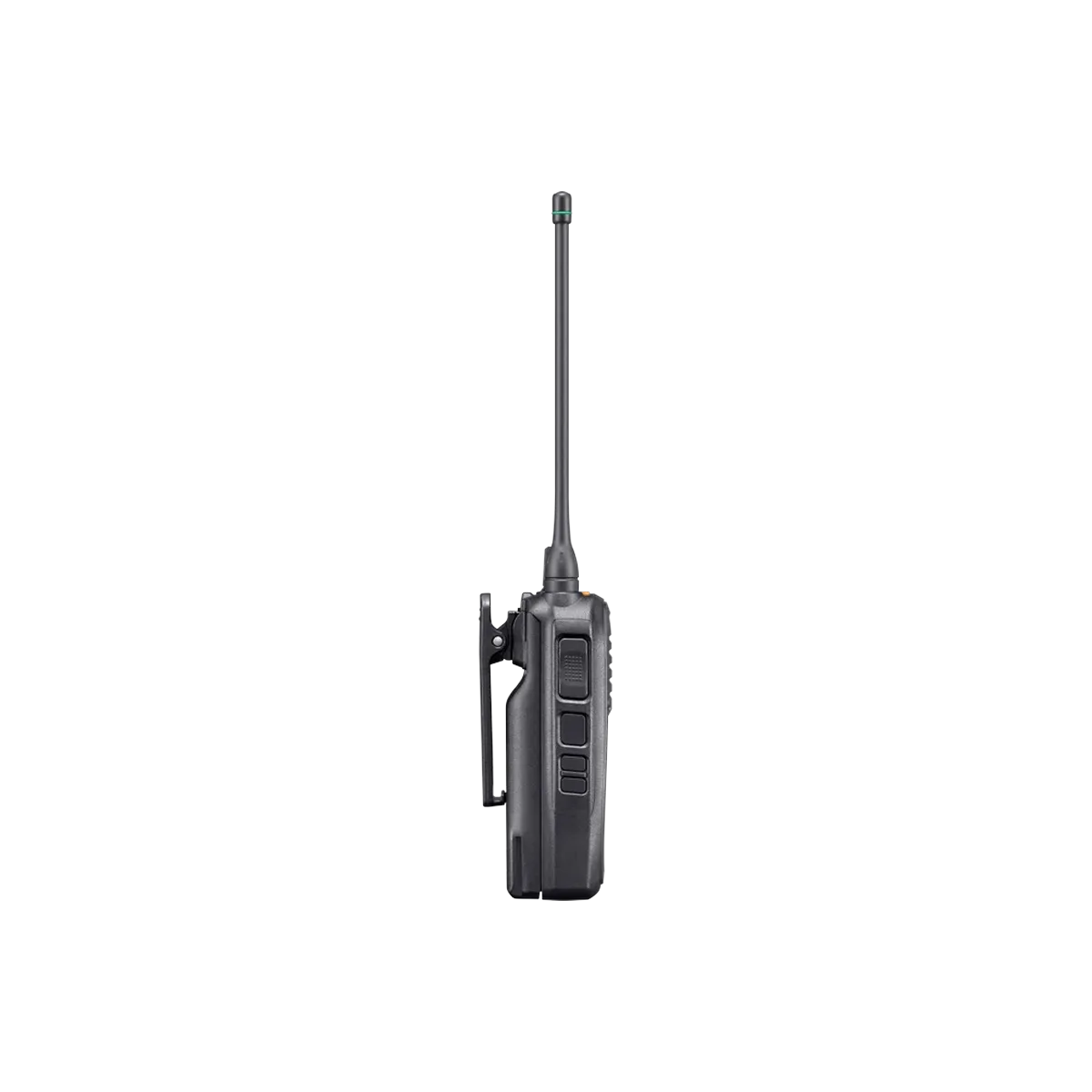

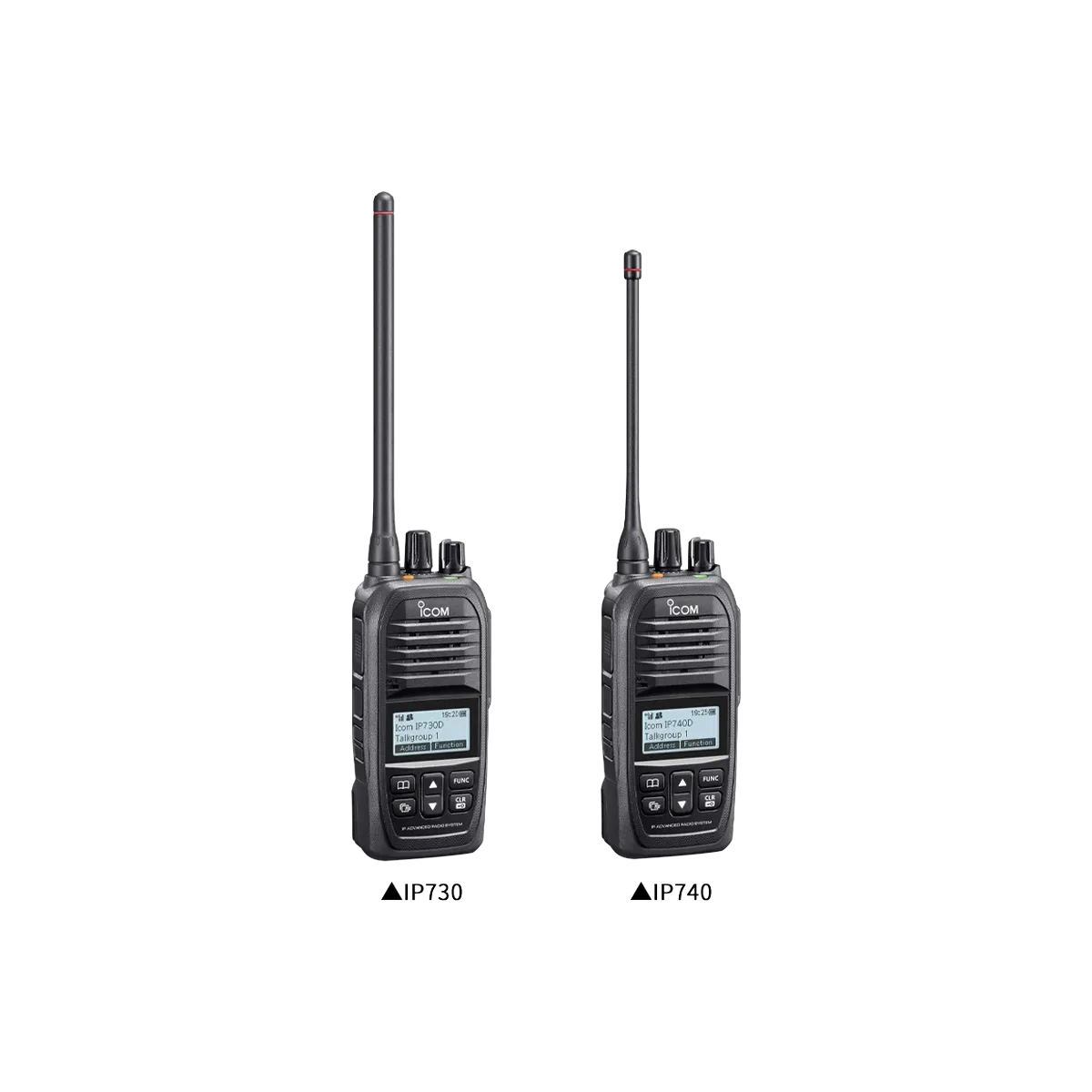

Icom IP730D / IP740D

The IP730D and IP740D pair LTE push-to-talk with conventional VHF or UHF IDAS digital and analog on dual PTT buttons, so a dead cellular zone does not take your crew off the air. Output runs 5W/2W/1W, the BP-303 pack delivers up to 24 hours on LTE or 13 hours at 5W VHF/UHF, and IP67 sealing plus MIL-810 G keep it working outdoors. Built for utilities, transportation, and security teams covering both city and remote sites.

5WRF Output Power
24hrMax Battery Life
IP67IP Rating
Icom

Overview

Crews that split time between city job sites and remote terrain end up carrying two radios: a cellular push-to-talk device for wide-area coverage and a licensed VHF or UHF radio for the mountains, basements, and dead zones where LTE drops out. Standardizing on one system alone means either paying for private radio infrastructure everywhere or losing communication the moment a job leaves cell coverage, and neither option works for utility, transportation, or security teams that cannot afford a blackout.

The IP730D and IP740D solve this with dual PTT buttons: the main button keys LTE push-to-talk over 4G/3G for nationwide reach, and the sub button switches to conventional IDAS digital or analog on 128 channels across 8 zones, running 5W/2W/1W output. The Bridge function relays IDAS digital traffic onto the LTE talkgroup and back (dropping to 1W while active), Simultaneous TalkListen gives full-duplex LTE conversations, built-in GPS reports position over LTE, and Bluetooth 4.2 (Class 2, HFP/HSP) pairs with wireless headsets. A 15-bit digital voice scrambler, OTAP over-the-air programming, and a 500-entry ID call list round out the feature set.

At 320 g and 140.5 x 61.7 x 42.8 mm with the BP-303 pack, the radio is rated IP67 for dust-tight, waterproof operation and meets MIL-STD-810 G across an operating range of -30C to +60C. A 1500 mW speaker cuts through noisy job sites, and the combination of LTE reach with a licensed radio fallback fits utility crews, transit operations, and security teams moving between covered and uncovered ground.

Request a Quote
5WRF Output Power
24hrMax Battery Life
IP67IP Rating
Specifications

Key Features

Hybrid LTE and IDAS Operation

Dual PTT buttons let one radio switch between LTE push-to-talk over 4G/3G and conventional VHF/UHF IDAS digital or analog. Both can be received at once with audio mixed, and either PTT answers its own group.

Bridge Function

Relays received IDAS digital audio to the LTE talkgroup and LTE conversations back to the IDAS group, useful when working outside LTE coverage. Output power drops to 1W while the Bridge function is active.

Built-In GPS

An integrated GPS receiver transmits position data at programmed intervals in LTE mode, so dispatch can track crews without a separate device.

IP67 Sealed, MIL-810 G Rugged

Rated dust-tight and waterproof to 1 meter for 30 minutes, and built to MIL-STD-810 G across a -30C to +60C operating range.

Bluetooth 4.2 Headset Support

Built-in Bluetooth Class 2 with HFP and HSP profiles pairs with wireless headset accessories, including PTT and programmable buttons.

Emergency Safety Functions

Man Down, Lone Worker, and Motion/Stationary Detection automatically transmit an emergency signal to dispatch, and the dedicated orange button triggers a manual emergency call.
