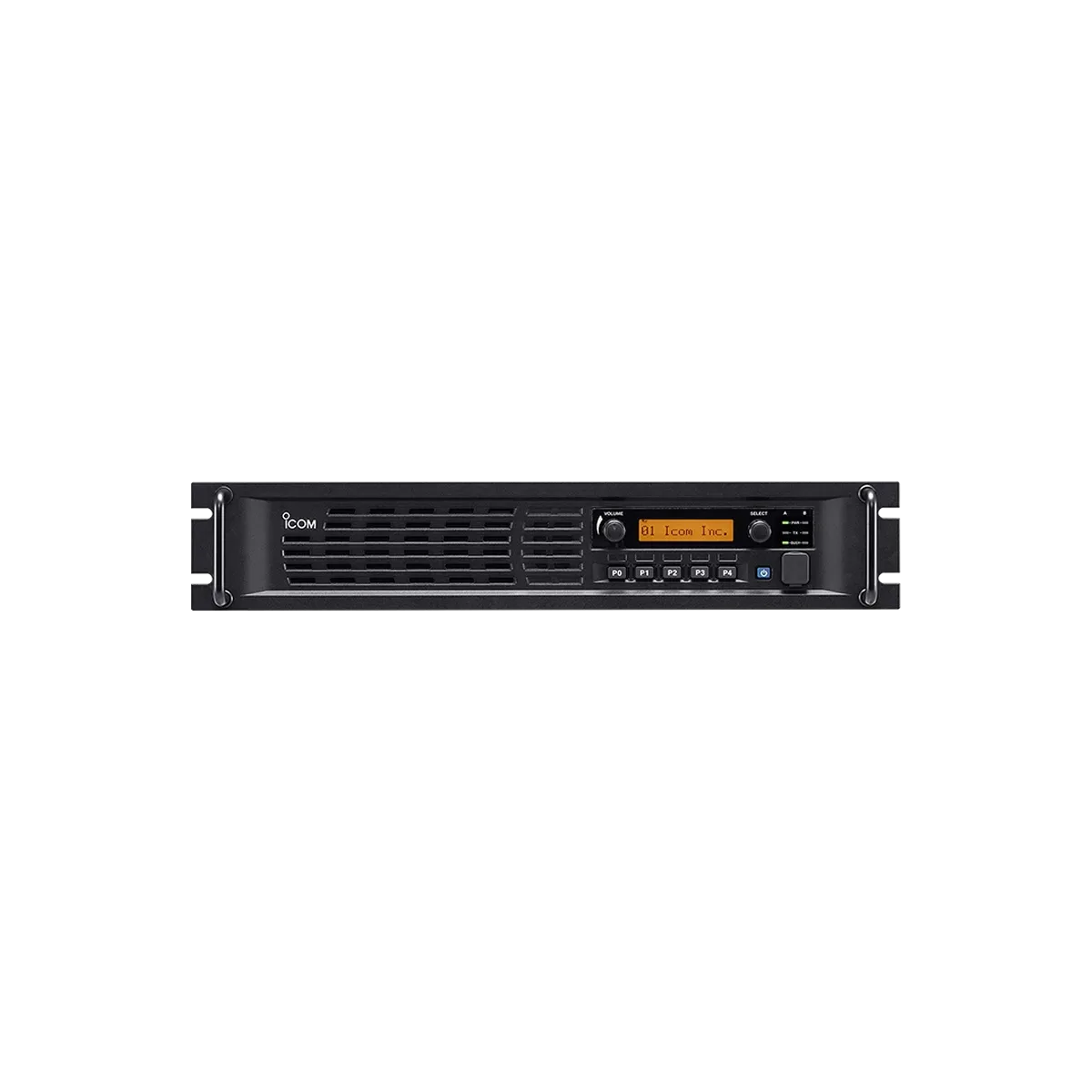

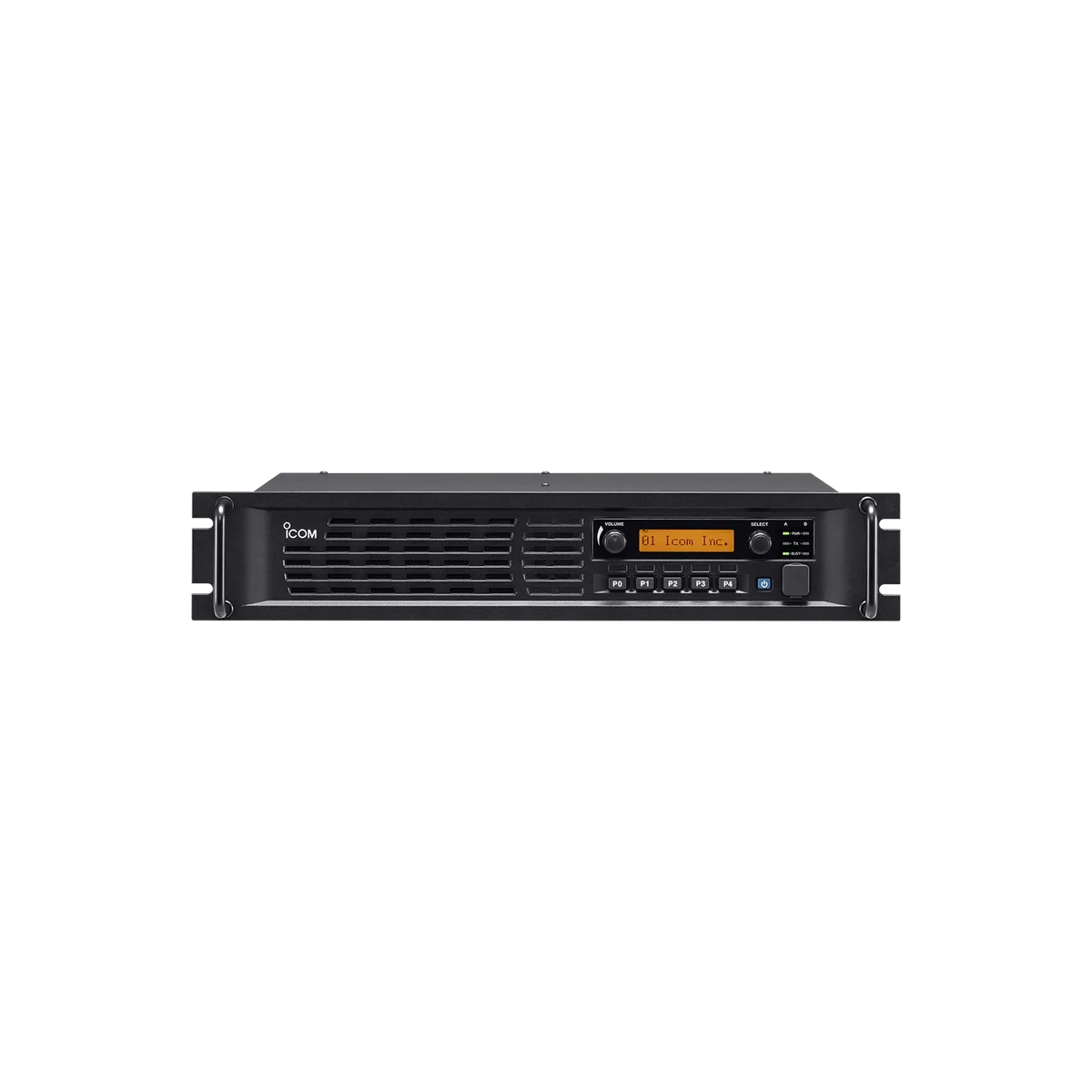

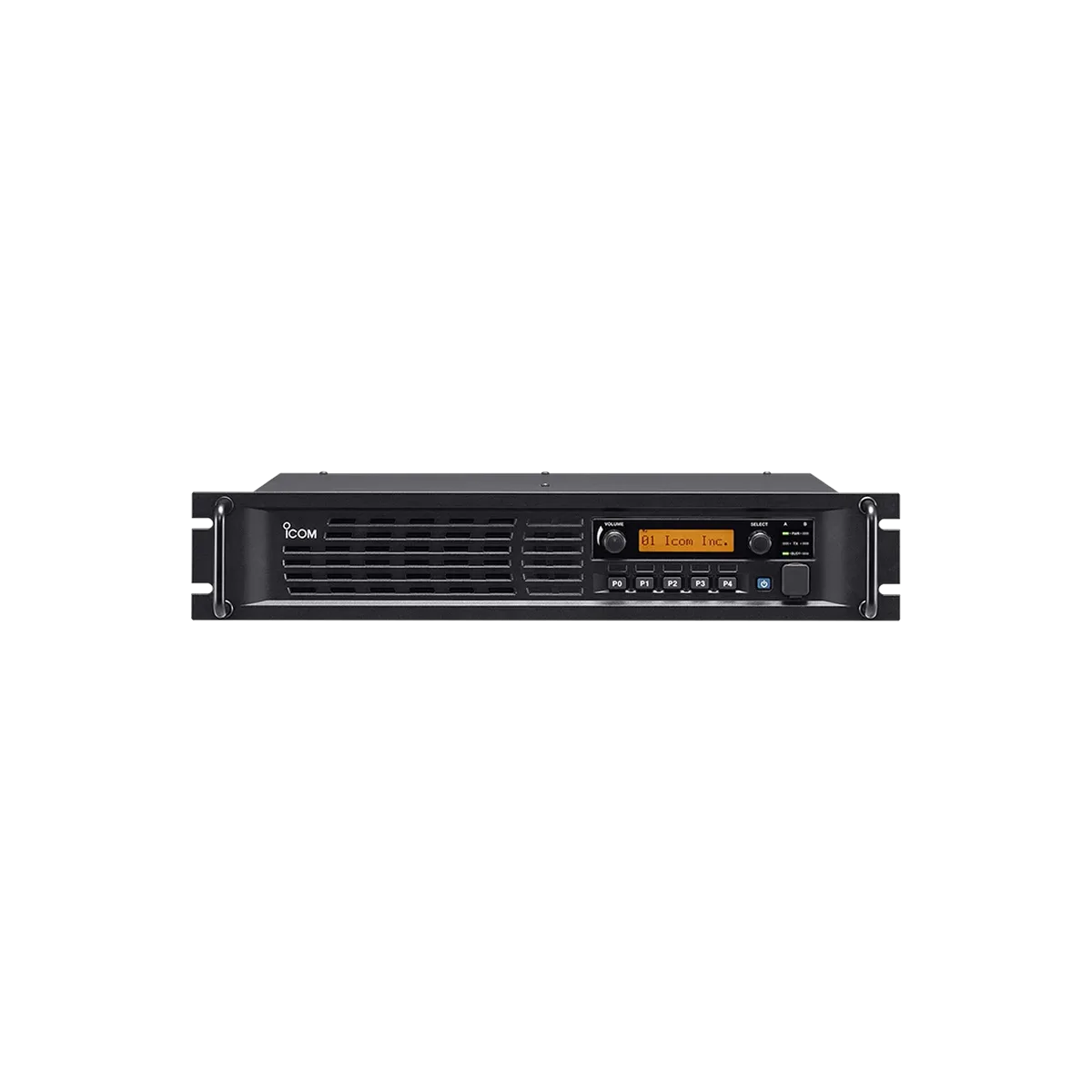

Icom IC-FR5300

Growing a two-way radio system usually means an expensive fork: rip out the base station and replace it, or live with coverage gaps as more users, buildings, or sites come online. Public safety and utility operators feel this hardest, since a single-site repeater that worked fine at launch can't cover a second building or tower without a new radio, and budget cycles rarely line up with when that gap shows up.

The IC-FR5300 is built to grow instead of get replaced. It ships as a single-site IDAS repeater running 32 channels and 50 watts of RF output (50% duty cycle), or a full 100% duty cycle at 25 watts, with an optional UR-PA5000/UR-PA6000 amplifier pushing output to 100 watts at 50% duty cycle. An optional UC-FR5300 network/controller board and GNSS antenna add digital simulcast, holding +/-0.1 ppm frequency stability off a 1 pps GNSS reference so multiple repeaters pair on one network. The same board upgrades the unit to single-site or multi-site IDAS trunking, with compatible radio terminals required for multi-site. A second internal RF module bay runs two independent channels from one chassis, and digital/analog mixed mode with CTCSS, DTCS, and RAN tone decoding keeps legacy analog fleets working alongside new digital terminals.

Rated MIL-810G for temperature, humidity, dust, vibration, and shock, and built to run from -30C to +60C (-22F to +140F), the IC-FR5300 fits a standard 19-inch, 2U rack mount at 5.78 kg (12.7 lb). It's the base station for business radio dealers and public safety teams building out multi-site IDAS networks one site at a time.
