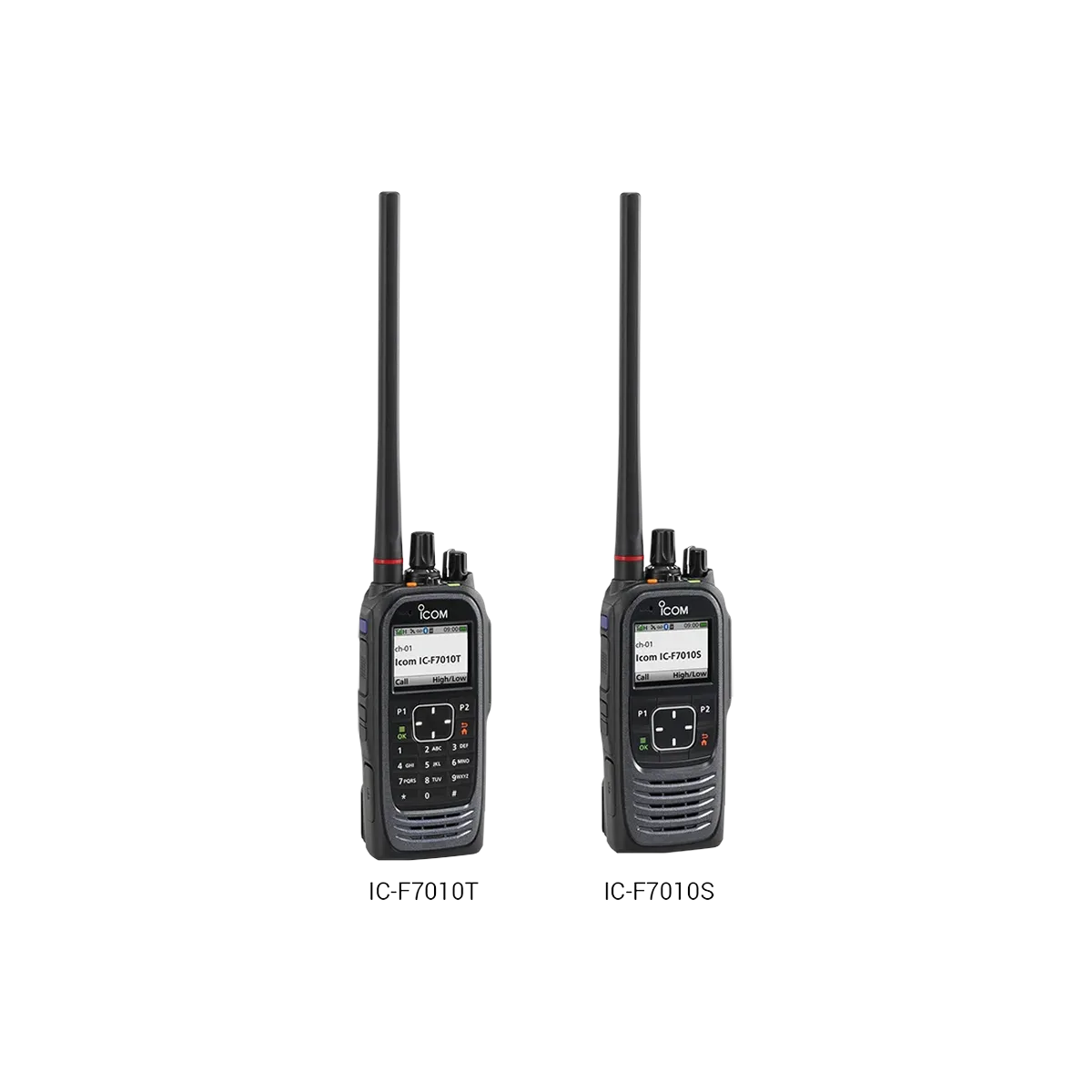

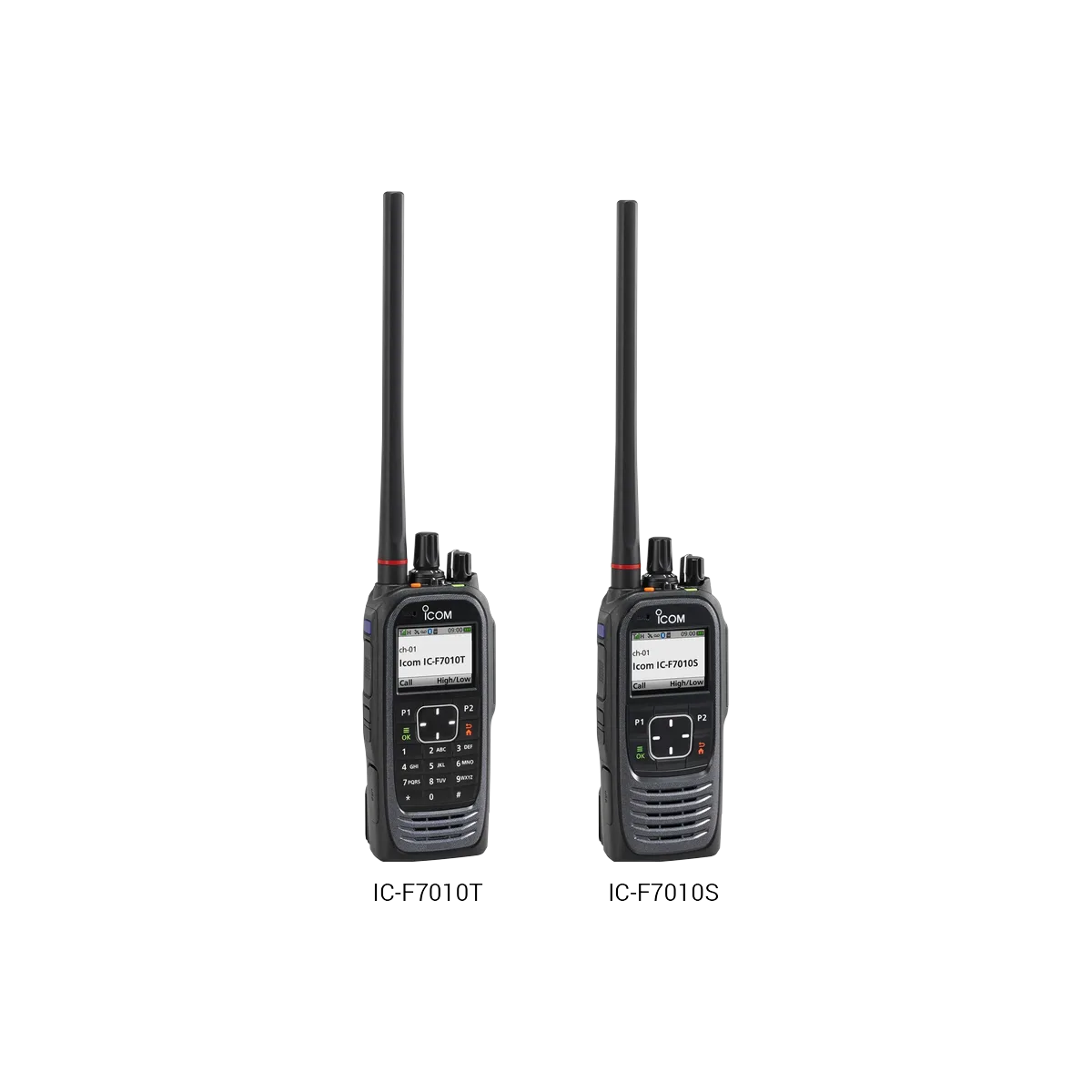

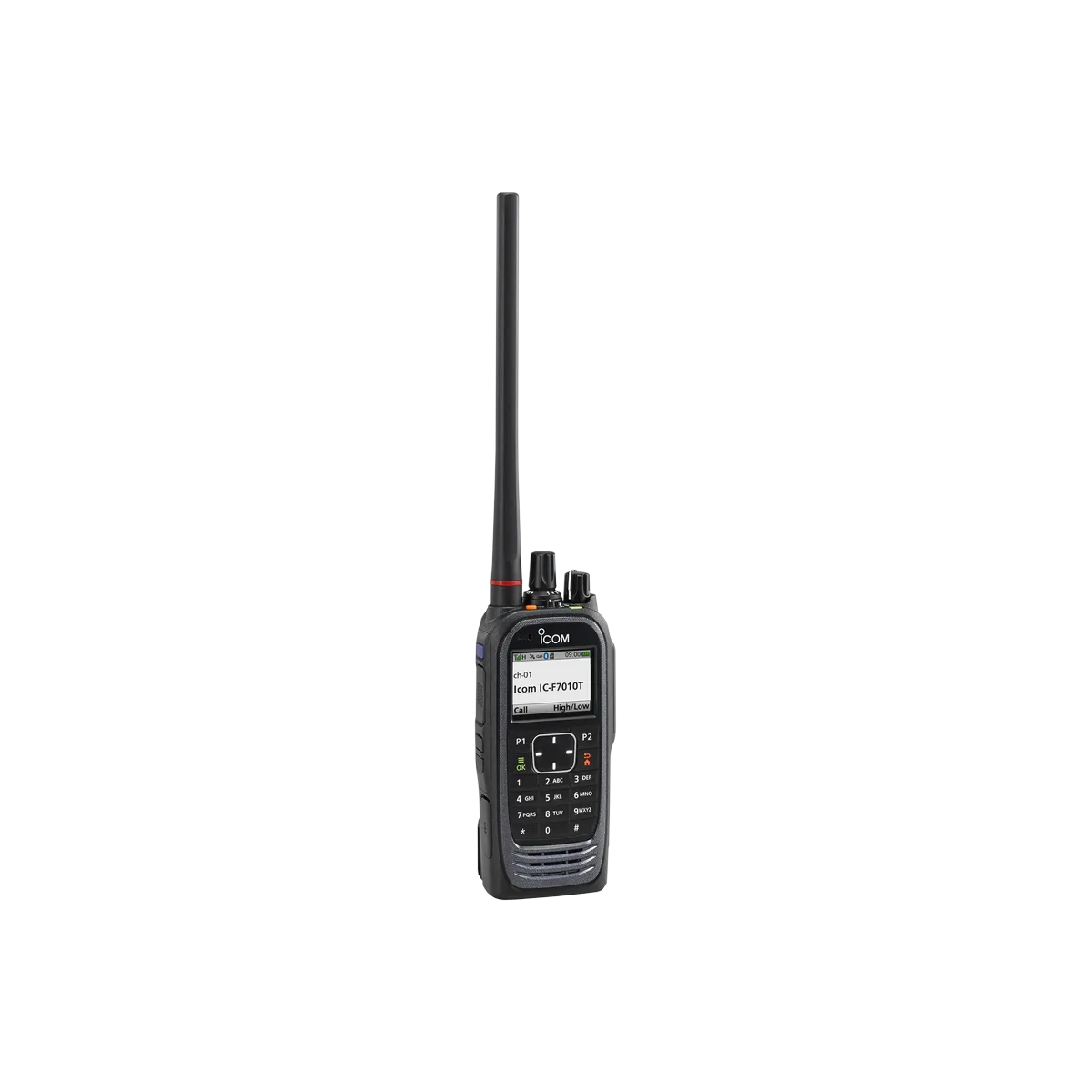

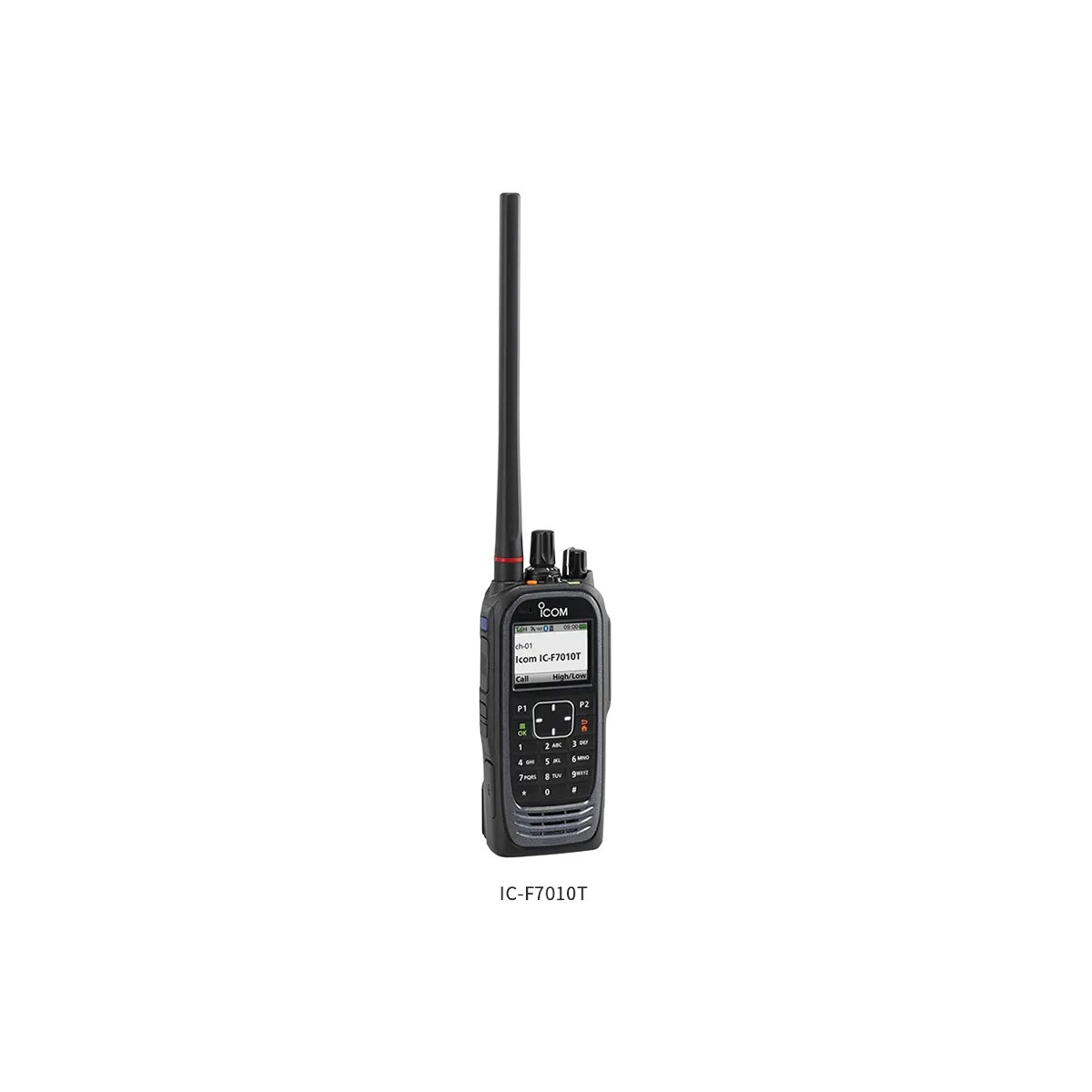

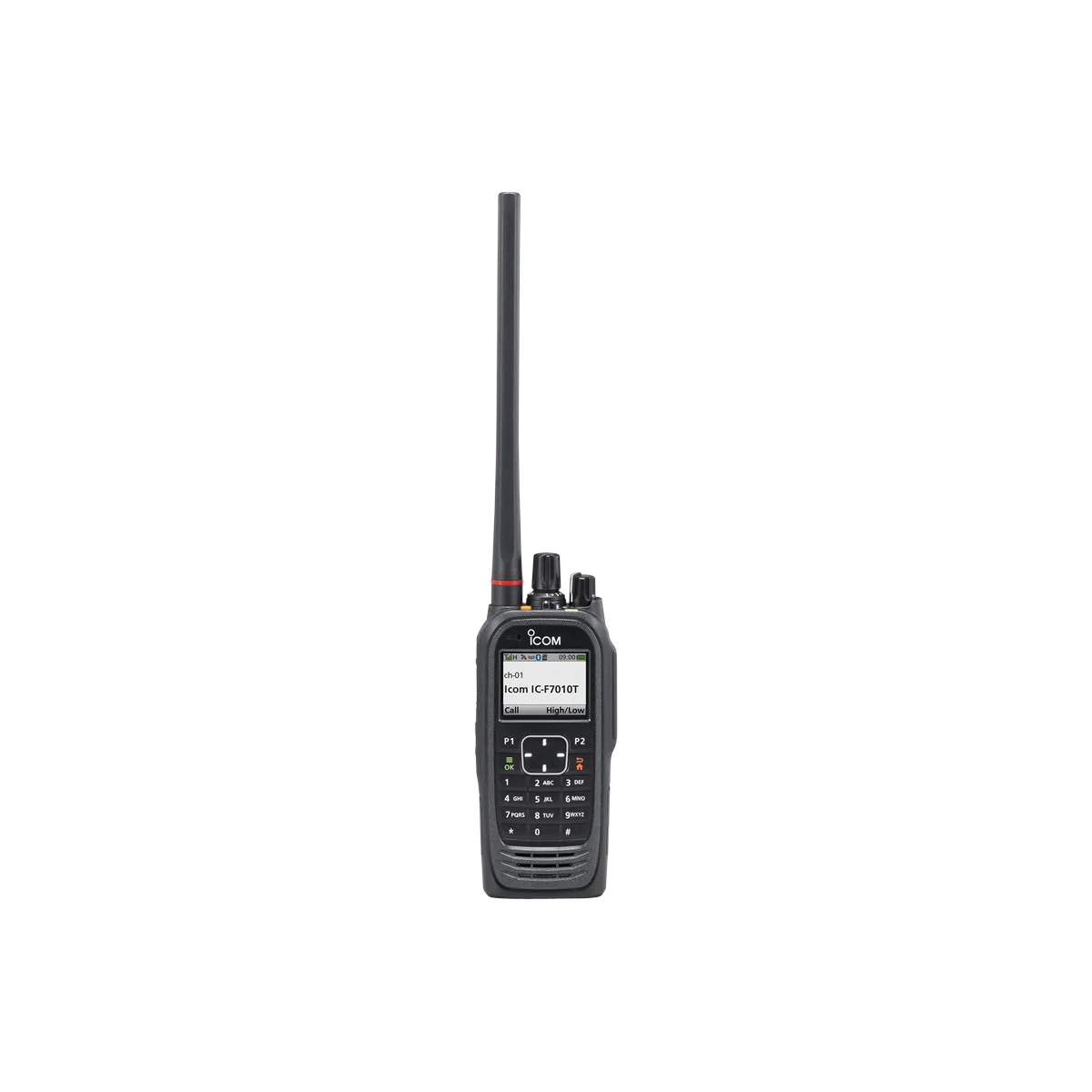

Icom IC-F7010
The IC-F7010 pairs DHS CAP certified P25 conventional and trunking with a VHF portable body just 38.2 mm deep and 355 grams, the smallest and lightest in its class. Power steps down 5W/2W/1W across 1,024 channels and 128 zones, with a color day/night display, built-in GPS, and Bluetooth for wireless headsets. IP68 and MIL-STD-810 G construction keep it running through rain, dust, and drops on law enforcement, fire, and EMS calls.
Overview
Public safety agencies moving to P25 need certified interoperability with the systems around them, but many P25 portables are bulky, power-hungry, and slow to reprogram across mixed VHF, UHF, and 700/800 MHz fleets. Agencies also need radios that survive daily drops, rain, and dust without adding weight to an already loaded duty belt.
The IC-F7010 answers with DHS CAP certified P25 conventional and trunking, Phase 1 and Phase 2, built on Icom's custom SoC, which shrinks the chassis to 38.2 mm deep while cutting power draw enough to run the thinner BP-284 battery pack. It covers 1,024 channels across 128 zones with 5W/2W/1W selectable output, a high-resolution color LCD with day and night modes, and a 16-position rotary channel selector with Quick A/B switch for fast bank changes. Built-in GPS and Bluetooth round out the set, with UHF (IC-F7020) and 700/800 MHz (IC-F7040) versions sharing the same feature set on different bands.
At 355 grams and 53.6 x 123.5 x 38.2 mm, the IC-F7010 is built to MIL-STD-810 G, tested for low pressure, high and low temperature, temperature shock, solar radiation, vibration, and shock, and rated IP68 for dust-tight, waterproof protection. It runs from -30 deg C to +60 deg C (-22 deg F to +140 deg F) and adds Man Down, Lone Worker, Stationary Detection, Motion Detection, and an Emergency Button that transmits an emergency call automatically. A 1300 mW internal speaker keeps calls audible for law enforcement, fire, and EMS agencies that need certified P25 interoperability in a radio light enough to carry all shift.
Key Features
P25 Conventional & Trunking
The IC-F7010 runs P25 conventional with optional Phase 1 and Phase 2 trunking upgrades alongside analog fallback, with 1,024 channels across 128 zones on the 136-174 MHz VHF band. UHF (IC-F7020) and 700/800 MHz (IC-F7040) versions share the same programming template.
IP68 & MIL-STD-810 G Rugged
Rated IP68 for dust-tight, waterproof protection, the radio is also tested to MIL-STD-810 G across low pressure, high and low temperature, temperature shock, solar radiation, vibration, and shock. It operates from -30 deg C to +60 deg C (-22 deg F to +140 deg F).
Built-In GPS Tracking
A built-in GPS module feeds a dedicated position screen on the radio, so dispatch and command staff always know where a unit is operating.
Bluetooth Wireless Connectivity
The built-in Bluetooth unit connects wireless headsets, including third-party models, with VOX for hands-free transmission. Radio programming can also be pushed over Bluetooth without a cable.
Emergency Safety Suite
Man Down, Lone Worker, Stationary Detection, and Motion Detection automatically trigger Emergency mode, and a dedicated Emergency Button transmits an emergency call once or repeatedly at the press of a button.
Compact Custom SoC Design
A custom SoC lets Icom hold the IC-F7010 to 38.2 mm deep and 355 grams, the smallest and lightest radio in its class, while a flat sheet keypad seals out dust without sacrificing button feel.
